8" Dual Cone Sound Masking Speaker with 4-Watt 70V Transformer and Enclosure - Round

M1000R

Availability: Call for Availability
Your Price:
$123.99
  • UL Listed
  • CE
  • 70V100VCAPABLE
    DESCRIPTION

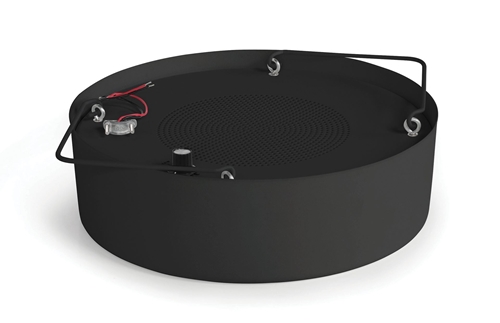

    The M1000R is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and non-reflective black finish blend in nicely with painted ductwork, lighting, and other devices suspended overhead.

    A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. Installation is made easy via the included 78" (2m) suspension chain system that allows quick mounting and height adjustment of the M1000R. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.

    Note, this product requires a masking generator and 70.7V amplifier to operate.


    Features
    • Sleek, Round Appearance Designed for Mounting in Open Plenum Areas Where Speakers May be Visible
    • Balanced Enclosure Design to Ensure Level Orientation When Suspended (78" (2m) Suspension Chain Included)
    • Fully Assembled Package Includes 8" Transducer with High Quality Line Matching Transformer
    • 0.25 to 4 Watt (@70.7V) Power Selection (Plus OFF) via External Switch
    • 382 cu in (6.26L) Enclosure Volume for Accurate Low Frequency Masking Spectrum Reproduction
    • Strain Relief to Facilitate Input Termination
    • Tested and Approved to UL2043 Standard for Use in Air Handling (Plenum) Spaces
    • Safety Listed to UL 1480 & UL 2043

    SPECIFICATIONS
    Loudspeaker 8" Dual Cone
    70.7V Power Taps .25, .5, 1, 2, 4 Watts
    Enclosure Volume 382in³ (6.26 ltrs.)
    Height 3.937" (100mm)
    Outside Diameter 12.992" (330mm)
    Weight 9.2lbs (4.17kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    M1000R Revit Drawing M1000R Revit Drawing
    M1000R-W Datasheet (3 pages) M1000R-W Datasheet (3 pages)

    Frequently Asked Questions

    What else do I need to make this sound masking speaker work?

    A sound masking speaker is only one component of an effective speech privacy system. A complete speech privacy system includes the sound masking speakers, a signal generator that outputs white and pink noise, and an amplifier (70.7V) that can send that white or pink noise signal out to the connected speakers.
